SPECIFICATION SHEET
Buffers / Polishers / Rotary Sanders Tool Selector
3,000 RPM 3 in. (77 mm) Buffer/Polisher/Rotary Sander
3,000 RPM 1-1/4 in. (32 mm) Mini-Random Orbital Sander and Buffer/Polisher Kit
Standard Product Configuration for 3 in. (77 mm) Buffer / Rotary Sander and 1-1/4 in. (32 mm)Mini Random Orbital Sander – 3,000 RPM |
|||||
| Note: All models & configurations in this table are Non-Vacuum | |||||
| Machine Type | Orbit | Pad Face | Pad Type | Pad P/N | Model No. |
| Buffer / Polisher and Rotary Sander | NA | Vinyl for PSAmounted abrasives | 3" (77 mm) diameter (1/4-20 male) | 1232100 | 031400 |
| Buffer / Polisher and Rotary Sander | NA | Hook for loopmounted abrasives | 3" (77 mm) diameter (1/4-20 male) | 1232101 | 031401 |
| Description | Part Number |

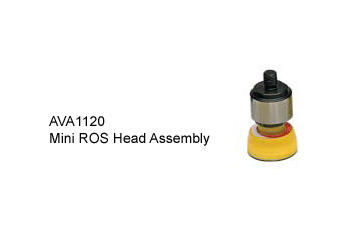

| Mini ROS Head Assembly | AVA1120 |
| Kit Configuration | Orbit | Pad Face | Pad Type | Pad P/N | Model No. |

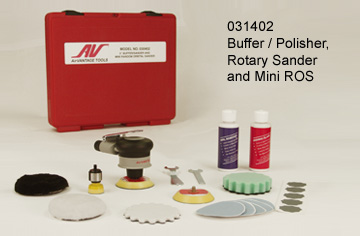

| Buffer / Polisher, Rotary Sander and Mini ROS | 3/32 in.(2.5 mm)Mini ROS Only | Vinyl for PSAmounted abrasives | 3" (77 mm) diameter(1/4-20 male) | 1232100 | 031402 |
| Hook for loopmounted abrasives | 3" (77 mm) diameter(1/4-20 male) | 1232101 | |||
| Vinyl for PSAmounted abrasives | 1-1/4" (32 mm) diameter(1/4-20 female) | 1211500 | |||
| * All sanders come with a 2-3/4 inch grip. 2-1/2 and 3 inch grips are also available. See Grips. | |||||
3 in. (77mm) Buffer / Rotary Sander and 1-1/4 in. (32 mm) Mini Random Orbital Sanders Table of Specifications
| Model Number |
Motor | Pad Dim. | * AIR Flow | ProductNet Wt. | Height | Length | ||||||
| hp | (W) | Inch | (mm) | SCFM | (LPM) | Pound | (kg) | Inch | (mm) | Inch | (mm) | |
| 031400 | 0.28 | (209) | 3 | (77) | 17 | (481) | 1.29 | (0.59) | 3.5 | (89) | 4.9 | (124) |
|
Additional Specifications: Air Inlet Thread is 1/4" NPT and Hose I.D. is 1/4" (6mm). |
||||||||||||
