Features:
• Rear exhaust directs air away from the operator.
• Soft grip for increased comfort.
• Available in 1/4 in. and 6 mm collet.
Die Grinders Table of Specifications
|
Model Number |
Collet Size |
Spindle Thread |
Free speed (RPM) |
Motor hp (W) |
*Air Flow SCFM (LPM) |
Product Net Wt. |
Height |
Length |
|

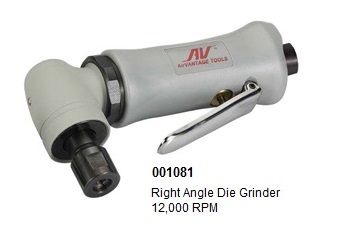

001081 |
¼ in. |
n/a |
12,000 |
0.40 (298) |
22 (626) |
1.24 (0.56) |
3.23 (81.9) |
6.10 (155.2) |
|
001082 |
6 mm |
n/a |
12,000 |
0.40 (298) |
22 (626) |
1.24 (0.56) |
3.23 (81.9) |
6.10 (155.2) |
|
001083 |
¼ in. |
3/8”-24 Male |
3,200 |
0.40 (298) |
22 (626) |
1.57 (0.71) |
5.63 (143.0) |
6.81 (173.0) |
|
001084 |
6 mm |
3/8”-24 Male |
3,200 |
0.40 (298) |
22 (626) |
1.57 (0.71) |
5.63 (143.0) |
6.81 (173.0) |
|
001085 |
¼ in. |
1/4”-20 Male |
3,200 |
0.40 (298) |
22 (626) |
1.57 (0.71) |
5.63 (143.0) |
6.81 (173.0) |
|
001086 |
6 mm |
1/4”-20 Male |
3,200 |
0.40 (298) |
22 (626) |
1.57 (0.71) |
5.63 (143.0) |
6.81 (173.0) |
|
Additional Specifications: Air Inlet Thread is ¼ in. NPT. * Air flow/consumption specifications are @ 90 psig (6.2 bar) |
||||||||
