Features:
• Lightweight ergonomic design for operator comfort.
• Rear exhaust.
• Soft grip for increased comfort.
Disc Sander Table of Specifications
|
Model Number |
Pad Dim. Inch (mm) |
Spindle(Tool) Thread |
Free speed (RPM) |
Motor hp (W) |
*Air Flow SCFM (LPM) |
Product Net Wt. |
Height |
Length |
|
001041 |
2 (51) |
1/4”-20 Male |
12,000 |
0.40 (298) |
22 (626) |
1.32 (0.60) |
4.40 (111.9) |
6.30 (160.0) |
|
001042 |
3 (77) |
1/4”-20 Male |
12,000 |
0.40 (298) |
22 (626) |
1.40 (0.64) |
4.40 (111.9) |
6.83 (173.4) |
|

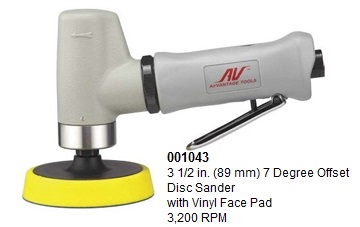

001043 |
3 1/2 (89) |
3/8”-24 Male |
3,200 |
0.40 (298) |
22 (626) |
1.50 (0.68) |
4.78 (121.5) |
7.76 (197.0) |
|
001044 |
3 1/2 (89) |
1/4”-20 Male |
3,200 |
0.40 (298) |
22 (626) |
1.50 (0.68) |
4.78 (121.5) |
7.76 (197.0) |
|
Additional Specifications: Air Inlet Thread is ¼ in. NPT. * Air flow/consumption specifications are @ 90 psig (6.2 bar) |
||||||||
