Features:
• Ergonomic 7 Degree offset handle and lightweight design minimize operator fatigue.
• Rear exhaust directs air away from the operator.
• Excellent for removing dirt nibs in clear coats and for spot repair.
• 3/16 inch (5 mm) orbit.
• Available in two spindle sizes.
7 Degree Offset Mini Random Orbital Sander Versatility Kit
• Four Tools In One. Two mini-random orbital sanders, 1/4 in. die grinder and 3-1/2 in. disc sander.
Kit Configuration
|
Model Number 3/8”-24 (1/4”-20) |
Kit Includes |
|
001030 (001040) |
1 - 3200 RPM 7 Degree Air Tool 1 - Mini Random Orbital Head Assembly with 1/4”-20 Female Thread Pad 1 - Mini Random Orbital Head Assembly with Quick Lock Pad 1 - 3-Piece 1/4” Collet 1 - 3” (77 mm) Dia. Disc Pad, Hook Face 1 - 3 1/2 (89 mm) Dia. Pad Vinyl Face |
7 Degree Offset Mini Random Orbital Sander Table of Specifications
3,200 RPM-3/16 in. (5 mm) Orbit
|
Model Number |
Spindle Thread |
Pad Type 1¼ in. diameter |
Pad Dim. Inch (mm) |
Motor hp (W) |
*Air Flow SCFM (LPM) |
Product Net Wt. |
Height |
Length |
|

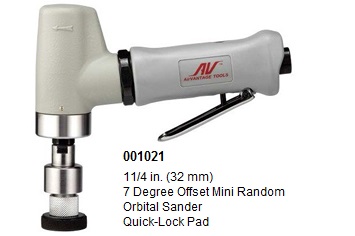

001021 |
3/8”-24 Male |
Quick-Lock (Vinyl) |
1¼ (32) |
0.40 (298) |
22 (626) |
1.60 (0.73) |
5.99 (150.2) |
6.81 (173) |
|
001031 |
1/4”-20 Male |
|||||||
|
001022 |
3/8”-24 Male |
Quick-Lock (Hook) |
1¼ (32) |
0.40 (298) |
22 (626) |
1.60 (0.73) |
5.99 (152.0) |
6.81 (173) |
|
001032 |
1/4”-20 Male |
|||||||
|
001023 |
3/8”-24 Male |
1/4”-20 Female Thread (Vinyl) |
1¼ (32) |
0.40 (298) |
22 (626) |
1.60 (0.73) |
5.91 (150.0) |
6.81 (173) |
|
001033 |
1/4”-20 Male |
|||||||
|
001024 |
3/8”-24 Male |
1/4”-20 Female Thread (Hook) |
1¼ (32) |
0.40 (298) |
22 (626) |
1.60 (0.73) |
5.91 (150.0) |
6.81 (173) |
|
001034 |
1/4”-20 Male |
|||||||
|
Additional Specifications: Air Inlet Thread is ¼ in. NPT. * Air flow/consumption specifications are @ 90 psig (6.2 bar) |
||||||||
